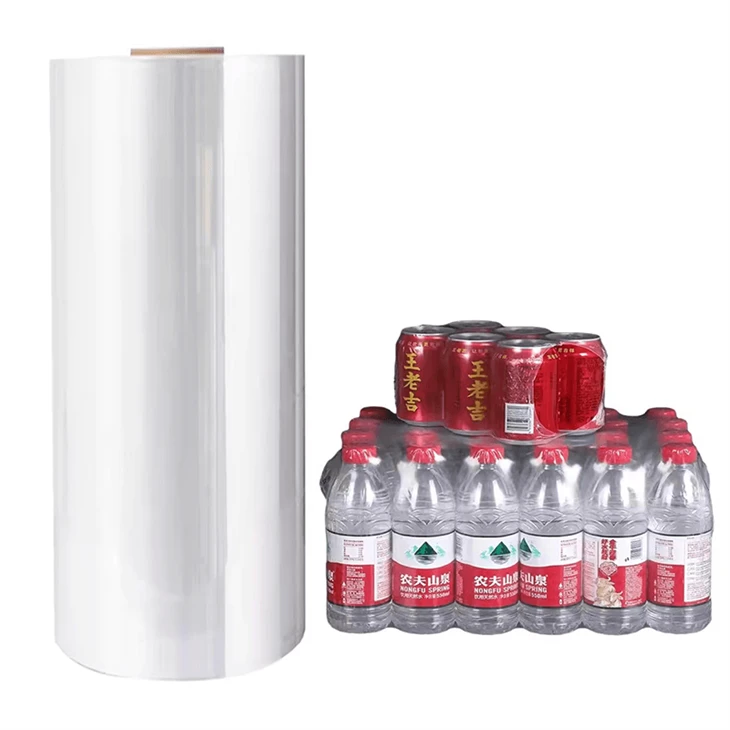

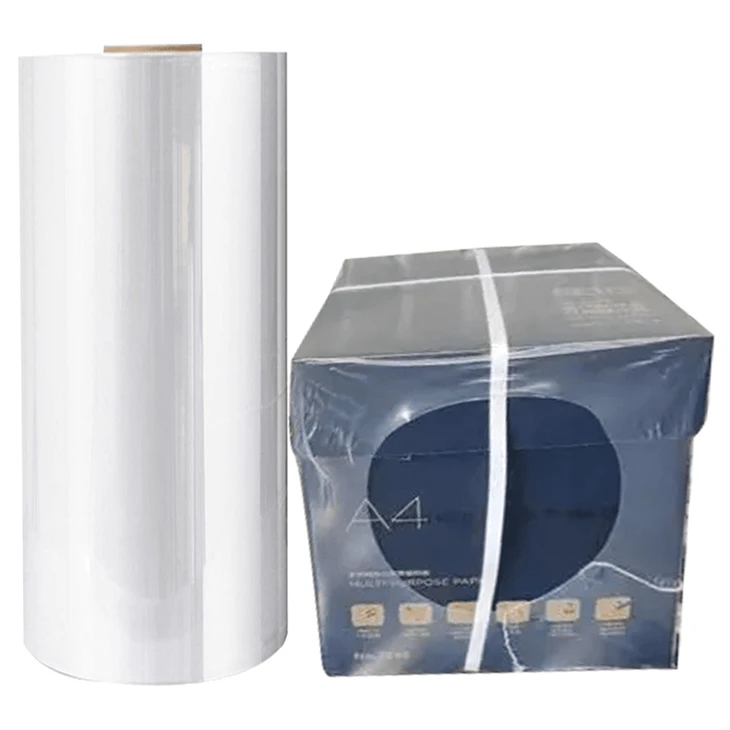

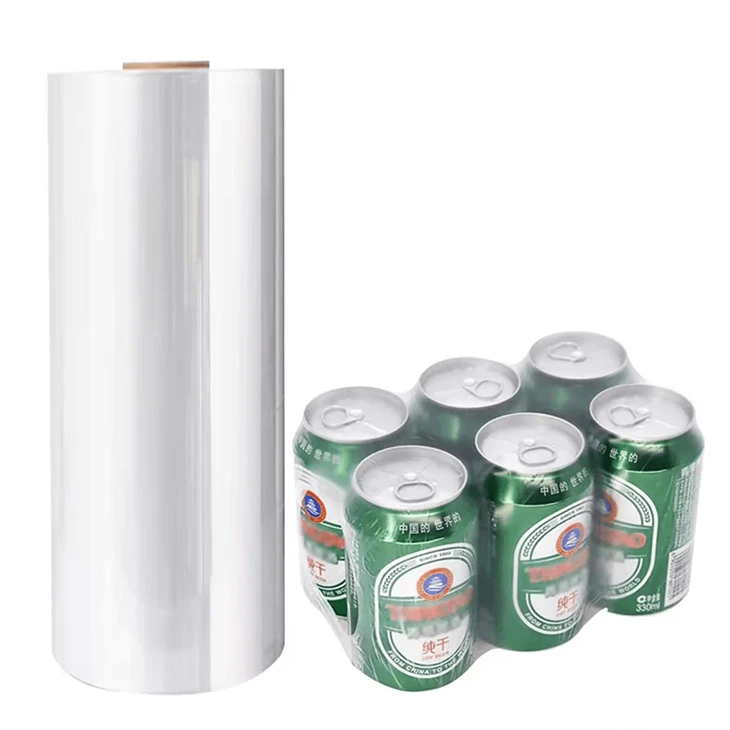

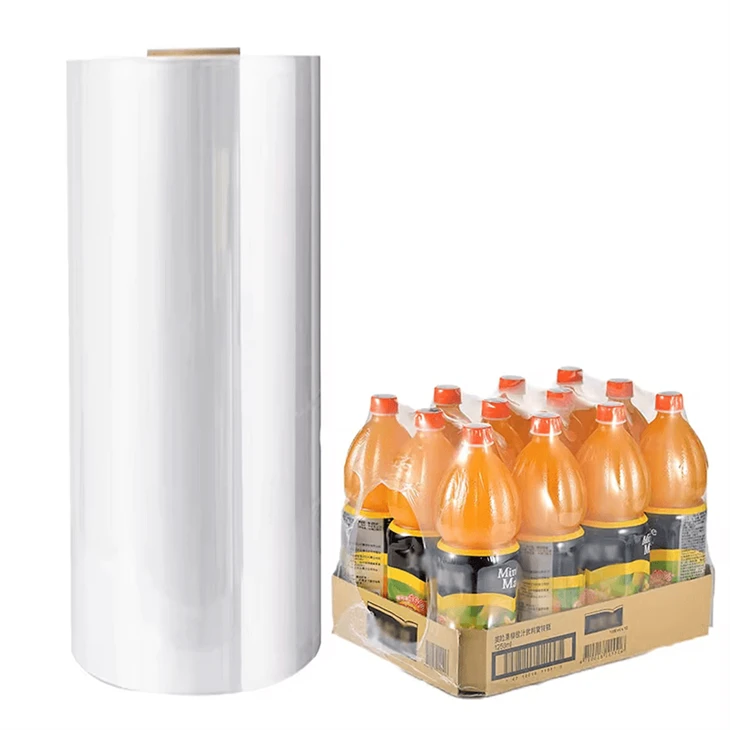

PE Heat Shrink Film

PE Heat Shrink Film：Packaging Material Details

Suitable for：High shrinkage rate bulk packaging film, multi-bottle beverage shrink film, food-grade heat shrink outer packaging, high-speed machine PE shrink film, puncture-resistant transport shrink film.

Send Inquiry Now

Basic Specifications

Category	Item	Parameter Range	Performance Description
Basic Specification Parameters	Material	Food-grade / Industrial-grade virgin PE	Pure raw material. Food-contact grade available on request, safe and eco-friendly.
	Thickness Range	20μm – 200μm	Wide adjustable thickness. Flexible selection based on load and application, balancing protection and cost.
	Finished Film Width	100mm – 2000mm (slittable as needed)	Custom widths supported. Suitable for different product sizes and equipment.
	Standard Roll Length	1000m / 1500m per roll (customizable)	Matches equipment reel specifications, reduces roll changes, improves production efficiency.
	Core Inner Diameter	3 inch (76mm), 6 inch (152mm)	Industrial standard sizes. Compatible with mainstream packaging machine unwind shafts.
Physical & Appearance Performance	Visible Light Transparency	≥95%	High clarity. Product labels remain visible after packaging, combining protection and display effect.
	Puncture Resistance	High grade (increases with thickness)	Resists sharp edges, corners, and external impact, reducing transport breakage rate.
	Heat Seal Peel Strength	≥12N/15mm	Strong seals. No cracking or seal failure during shrinkage, even under heavy load.
	Appearance After Shrinkage	Flat, no wrinkles, no fish-eyes, no pinholes	Smooth and transparent film surface with excellent finished packaging quality.



Single heat shrink film

view more



Folding heat shrink film

view more



tubular heat shrink film

view more



Full-length heat shrink film

view more



Packaging Methods & Equipment for PE Heat Shrink Film?



Choosing the right packaging method is essential to maximize the performance of PE shrink film. Depending on your production volume, product type, and automation requirements, different shrink wrapping solutions can be applied to achieve optimal protection, presentation, and efficiency.



Method / Equipment	Description	Typical Applications	Automation Level
Sleeve Wrapper	Products are wrapped with PE film in a sleeve form and then passed through a shrink tunnel for tight bundling	Bottled water, beverage multipacks, canned goods, bulk packaging	Medium to High
L-Bar Sealer	Uses an L-shaped sealing blade to seal and cut the film before shrink wrapping	Single products, boxed goods, e-commerce packaging	Medium
One-Piece Wrapper	Integrated system combining sealing and shrinking in one compact unit	Small to medium production lines, multi-product packaging	Medium to High
Manual Heat Gun Shrinking	Heat gun is used to manually shrink the film without a shrink tunnel	Irregular products, construction materials, low-volume packaging	Low

Sleeve Wrapper

L-Bar Sealer

One-Piece Wrapper

Manual Heat Gun Shrinking

With 16 years of specialized experience in manufacturing PE shrink film, our products are widely used for bundling or multipack packaging of liquid food products-including mineral water, beverages, beer, bottled water, condiments, and dairy products. By replacing traditional cardboard boxes, our film helps customers reduce packaging costs while enhancing the visual appeal and perceived quality of their products. Over the years, we have provided customized PE shrink film solutions for numerous food companies, earning us recognition across the industry for consistent product quality.


Water Beverage

beer

Cardboard Boxes

foam boxes

other shrink films

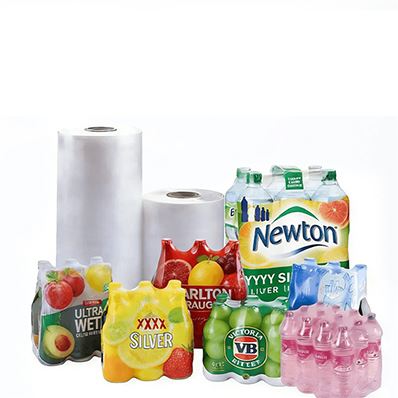

Beverage Packaging Shrink Film Solutions for Bottled Water, Soft Drinks, Juice and Beer

Secure, Cost-Effective and Sustainable Multipack Packaging for the Beverage Industry

• 5K +factory
  Completed Projects
  5k complete work
• 30 +Year
  Professional Experience
  Water Packaging Solutions

LEARN MORE

As a professional PE shrink film manufacturer, our factory is strategically located in the internationally renowned metropolis of Shanghai, offering convenient transportation and located just 30 minutes from the international airport. Our facility spans over 6,000 square meters, including a 3,300 square meter standardized warehouse. With a dedicated team of over 50 employees, we have established comprehensive production, warehousing, and service systems to ensure stable operations. Our founder, Mr. Shen, brings over 20 years of experience in the plastic bag processing industry, providing solid technical support for our product development and manufacturing. Our core advantages include:

1. High Production Capacity for Shrink Film

In terms of production capabilities, we have invested in advanced manufacturing equipment, including 10 blown film production lines and 3 gravure printing lines, along with dozens of processing machines such as bag makers, slitters, and folders. Our blown film lines can operate 24/7 without interruption, while our printing lines can handle a maximum width of 1.2 meters and print in up to 7 colors simultaneously. We maintain complete in-house capabilities covering design, blown film extrusion, printing, bag making, and sales. With over 500 tons of raw materials consistently in stock, we can offer same-day shipment for in-stock items, next-
day shipping for samples, and delivery of custom orders in as fast as three days-efficiently meeting diverse customer requirements.


2. Guaranteed High Quality

Our company places a strong emphasis on management optimization and strict quality control. We have adopted the lean management philosophy of Kazuo Inamori, implementing hands-on shop floor management and using Green Belt projects to refine our production processes and resolve technical challenges. At the same time, we provide Blue Belt education to all employees and Green Belt training to our management team, embedding lean principles into daily operations. This approach helps us reduce operating costs and pass those savings on to our customers.

We have established a comprehensive quality control system. Our facility has passed the rigorous Alibaba "Super Factory" audit, holds ISO 9001 certification, and all products are backed by test reports from respected third-party organizations such as SGS and CTS. Every batch of PE shrink film and plastic packaging we produce undergoes strict quality inspection to ensure it meets both industry standards and customer requirements.
